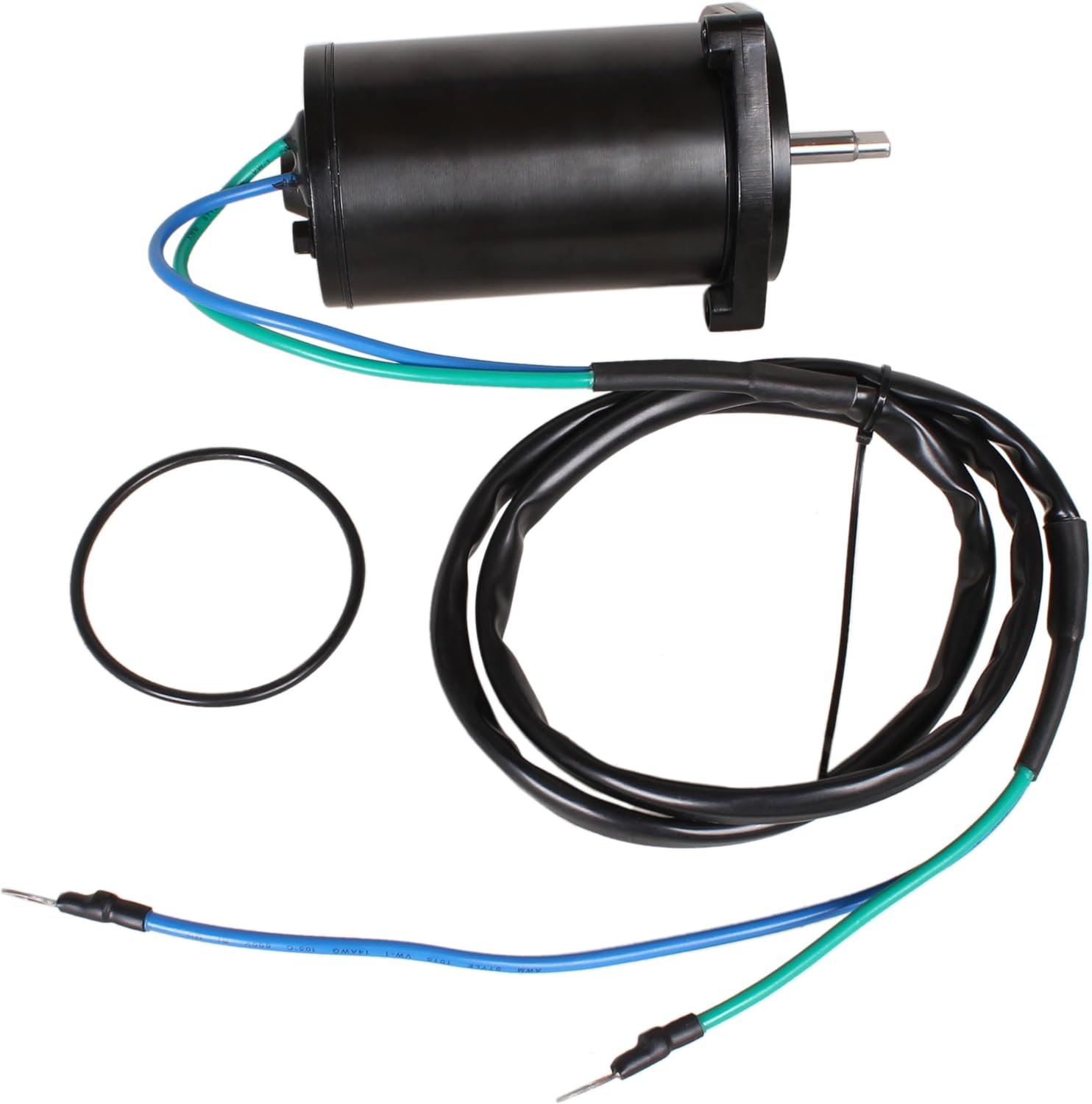

Tilt Trim Motor

• Fit Engine: 50HP 60HP F50TLR F60TJR F60TLR T50TLR T60TLR
• Fit Part Number: 10860, TRM0083, 6C5-43880-01-00, 6C5438800100, 6C5-43880-01, 6C54388001, 6C5-43880-00-00, 6C5438800000, 6C5-43880-00, 6C54388000, 430-22077, 43022077, 18-6836, 186836, 10860N
• Fit API MARINE: PT625NM, Fit ARROWHEAD: TRM0083, Fit J & N: 430-22077, Fit LESTER: 10860, Fit WAI: 10860N

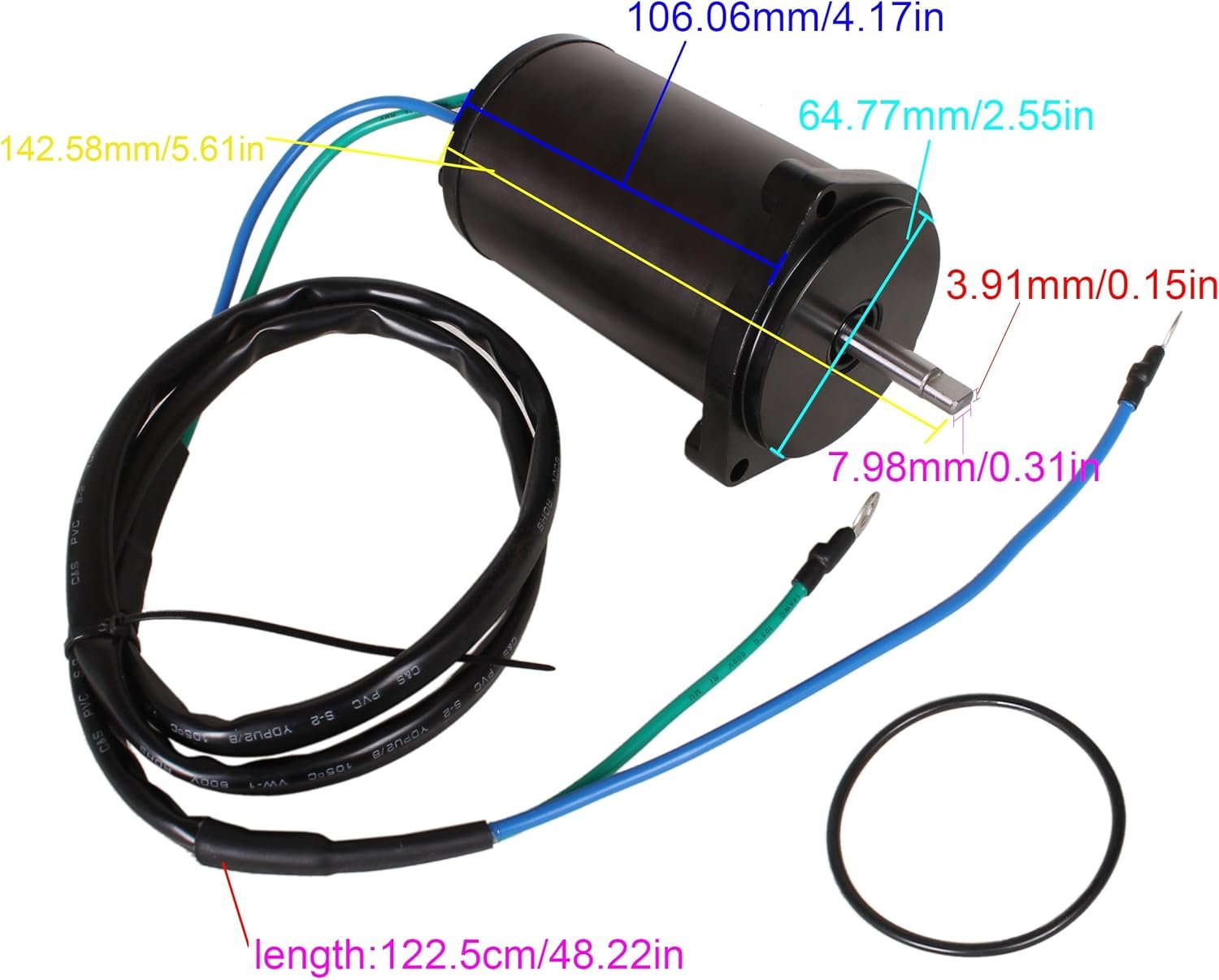

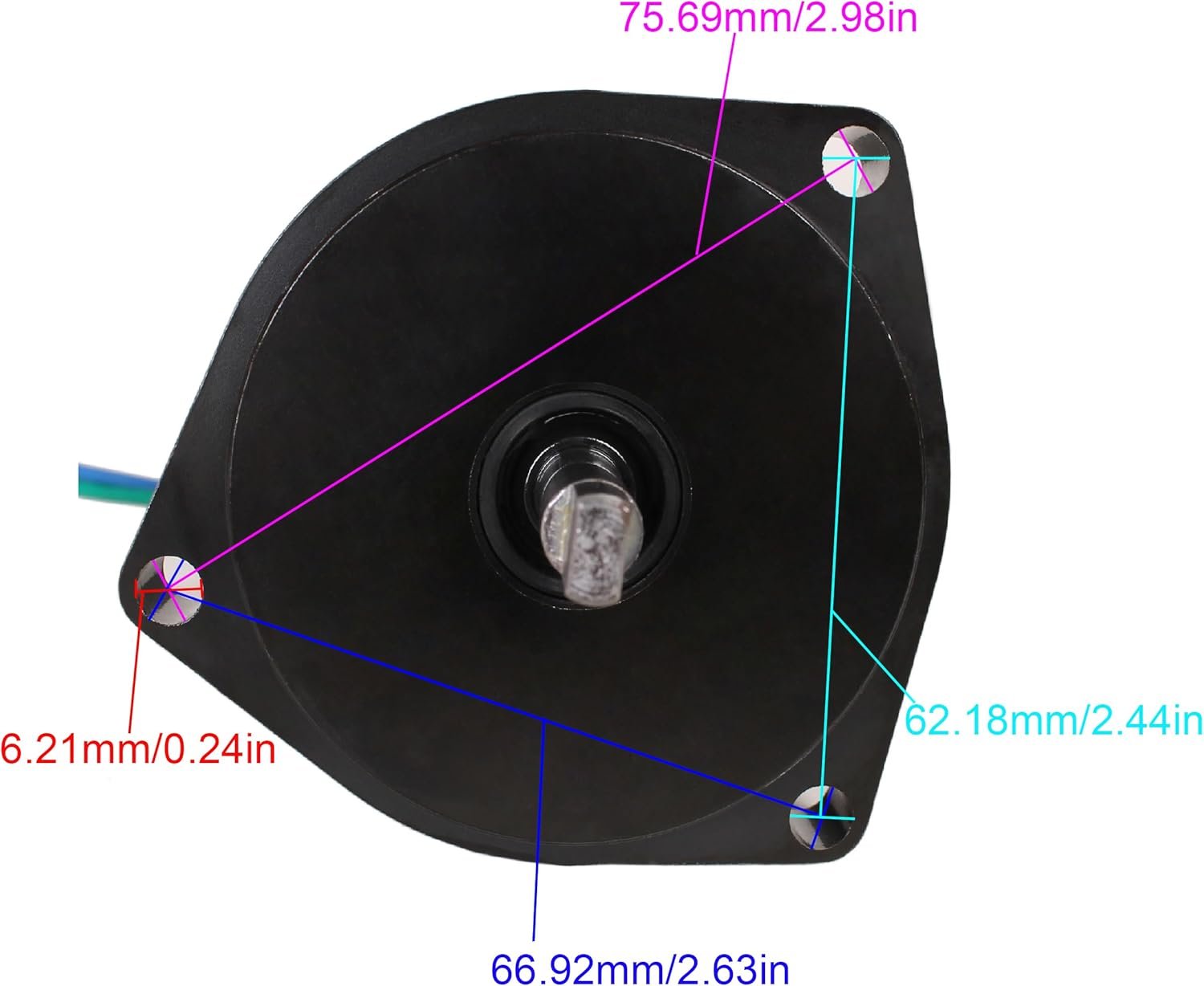

• Voltage: 12, Rotation: Reversible, OD: 2.52in / 64mm, Shaft OD: 0.315in / 8mm, Length: 5.78in / 146.8mm, Terminal 1 Size: 6.5, Terminal 2 Size: 6.5, Shaft: Slotted, Current Type: DC
• If you are unsure, please provide your engine serial number.

Application:

This 6C5-43880-01-00 POWER TRIM TILT MOTOR fits Yamaha the following models and components:

2012 60HP F60JA 2012 Power Trim & Tilt Assy 2

2012 50HP T50LA 2012 Power Trim & Tilt Assy 2

2013 60HP T60LB 2013 Power Trim & Tilt Assy 2

2006 50HP T50TLR 2006 Power Trim & Tilt Assy 2

2008 50HP T50TLR 2008 Power Trim & Tilt Assy 2

2011 50HP F50TLR 2011 Power Trim & Tilt Assy 2

2014 60HP F60LB 2014 Power Trim & Tilt Assy 2

2007 60HP T60TLR 2007 Power Trim & Tilt Assy 2

2011 60HP F60TJR 2011 Power Trim & Tilt Assy 2

2005 50HP T50TLRD 2005 Power Trim & Tilt Assy 2

2013 60HP F60JB 2013 Power Trim & Tilt Assy 2

2005 60HP F60TLRD 2005 Power Trim & Tilt Assy 2

2014 50HPH T50LB 2014 Power Trim & Tilt Assy 2
